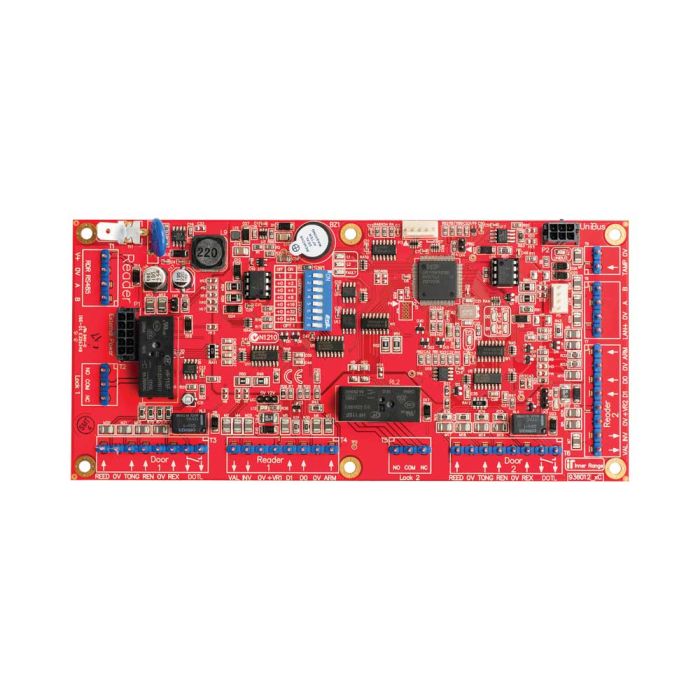

Inner Range Integriti - Intelligent LAN Access Module - PCB only

The Integriti Intelligent LAN access module can be used to control and monitor up to 8 doors or lift cars on the Integriti RS-485 LAN, or via IP LAN if connected with CLOE modules. The base module supports two doors/two readers and is expandable up to 8 doors/8 readers with the simple addition of 2 door expander boards via the UniBus in-cabinet expansion interface.

Key Features

• RS-485 LAN connectivity
• Reader options to control doors, lifts, areas and user logon
• Reader outputs with individual self-resetting over current protection
• UniBus in-cabinet expansion interface
• Dedicated lock power input
• Heavy duty lock relays
• Door reed & tongue sense inputs per door
• Door request to enter & exit inputs per door
• DOTL relay outputs per door
• Dedicated cabinet tamper input
• Remote firmware upgrade over-the-wire

Doors & expansion options

• Expandable to 8 doors (2 doors on board)
• Expandable to 8 Wiegand readers (2 readers on board)
• Salto Sallis integration - up to 8 doors via dedicated RS-485 reader port

Offline intelligence

• Offline intelligence provided for all Wiegand readers and standard lock outputs
• Offline access control database for 100,000 users
• Offline time periods
• Offline event database of 100,000 events
