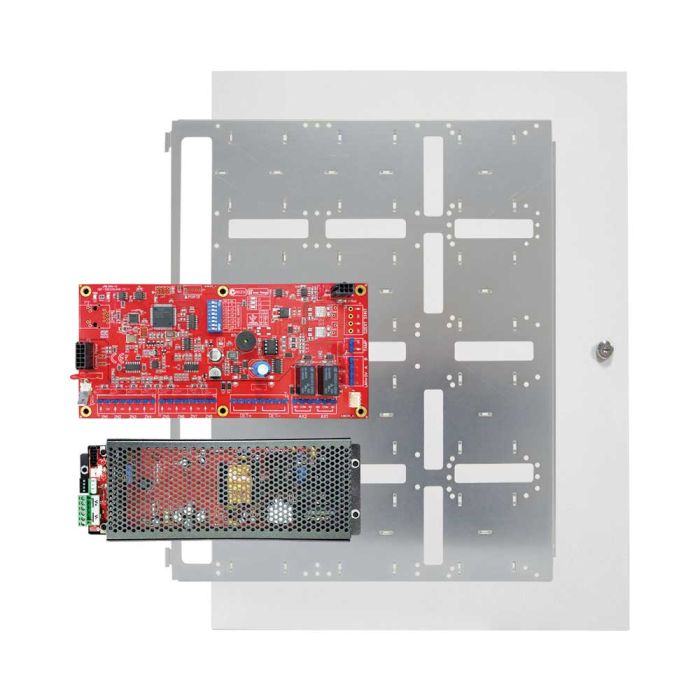

Inner Range Integriti 8 Zone LAN Expander with Mega Cabinet, 8 Amp Smart PSU & Transformer
LAN expander with mega cabinet & 8 amp smart PSU
In stock
SKU
21127
The Integriti 8 zone LAN expander adds input and output expansion to an Integriti system via RS-485 LAN or IP if connected with CLOE modules. The base module supports eight zone inputs, two relay outputs and two siren driven outputs.
Key Features
- RS-485 LAN connectivity
- Support for Multistate EOL zones (8 x states)
- Every zone can be programmed as an analogue zone
- On board siren drivers (8 x Tones)
- UniBus in-cabinet expansion interface
- External Integriti power supply connection
- Full monitoring of external Integriti power supply
- Dedicated cabinet tamper input
- Remote firmware upgrade over-the-wire
- Expansion options
- Expandable to 32 inputs and 32 outputs via Unibus Expansion
