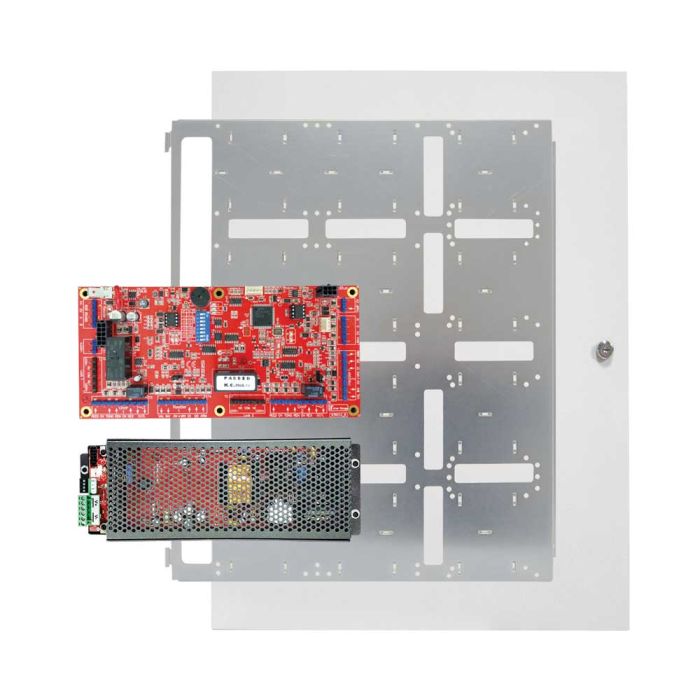

Inner Range Integriti Intelligent LAN Access Module (ILAM) with Mega Cabinet & 8 Amp Smart PSU

Inner Range Integriti Intelligent LAN Access Module (ILAM) with Mega Cabinet & 8 Amp Smart PSU
Intelligent access module with mega cabinet & 8 amp smart PSU

SKU:21157

Test 1

Test 2

Overview

Details

The Integriti Intelligent LAN access module can be used to control and monitor up to 8 doors or lift cars on the Integriti RS-485 LAN, or via IP LAN if connected with CLOE modules. The base module supports two doors/two readers and is expandable up to 8 doors/8 readers with the simple addition of 2 door expander boards via the UniBus in-cabinet expansion interface.

Features:

  • RS-485 LAN connectivity
  • Reader options to control doors, lifts, areas and user logon
  • Reader outputs with individual self-resetting over current protection
  • UniBus in-cabinet expansion interface
  • Dedicated lock power input
  • Heavy duty lock relays
  • Door reed & tongue sense inputs per door
  • Door request to enter & exit inputs per door
  • DOTL relay outputs per door
  • Dedicated cabinet tamper input
  • Remote firmware upgrade over-the-wire

Doors & expansion options:

  • Expandable to 8 doors (2 doors on board)
  • Expandable to 8 Wiegand readers (2 readers on board)
  • Salto Sallis integration - up to 8 doors via dedicated RS-485 reader port

Offline intelligence:

  • Offline intelligence provided for all Wiegand readers and standard lock outputs
  • Offline access control database for 100,000 users
  • Offline time periods
  • Offline event database of 100,000 events
