- Overview
-
Details

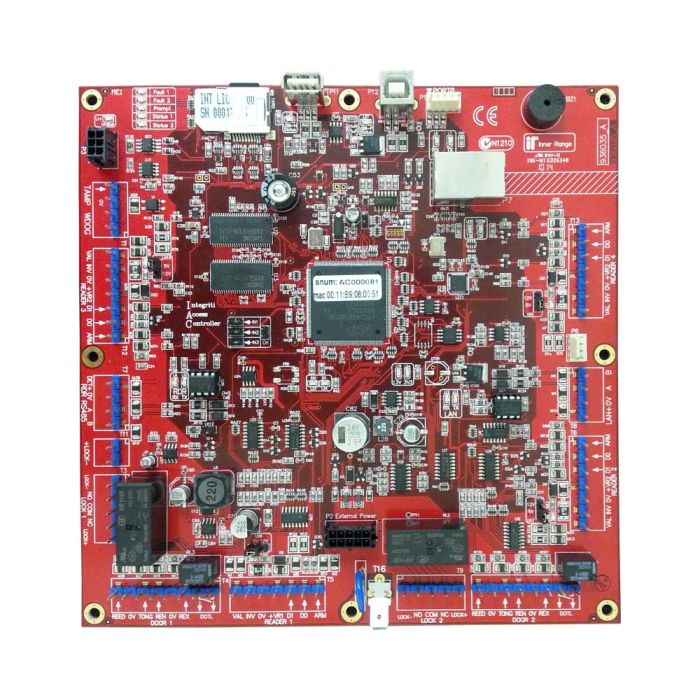

The Integriti Access Controller (IAC) is a state-of-the-art IP connected intelligent Controller designed for Access Control applications. The IAC can directly manage up to 8 doors locally or up to 250 doors via RS-485 Sub-LAN expansion. All decision making is intelligently processed by the Controller with no reliance on the system server (should the connection to the server be offline).
The main Controller is equipped with connections for 2 Doors and 4 Wiegand Card Readers, a Watchdog Output, Ethernet and USB ports and a dedicatedRS-485 reader port. Additional connections for Doors and Wiegand Readers can be added via the IAC’s UniBus port with up to 3 UniBus 2 Door/2 Reader expansion devices (Part. 996535PCB&K), this allows for flexible configurations of 2, 4, 6 or 8 doors, and up to 10 Wiegand readers.
The RS-485 Reader port accommodates up to 16 Inner Range SIFER or compatible third party OSDP multi-drop readers, providing ‘in & out’ directional access control for each door. The IAC can also be used for integration of wireless door locking systems from Assa Abloy Aperio, SimonsVoss or Salto Sallis.
Larger systems may consist of many IAC’s networked together to form an enterprise-wide IP connected intelligent access control solution. Each IAC can support up to 3,000 Zone Inputs, 3,000 Outputs, 250 Areas and over 1,000 Card Readers and 250 Doors. User capacity of up to 100,000 users is available, and capacity for 1,000,000 users is also available with the User expansion kit.
- Optional Extras
-
Pair this product with:
Check items to add to the cart or select all
-
- Media
-
Details
Inner Range Integriti - How to create smart buildings by taking your security and building management to the next level.
Inner Range Security and Access Control solutions are leaders in Global research development and deployment of enterprise class security and access control systems.
The Integriti Mobile App packs a powerful punch of accessibility and control for your Integriti security and access control system. With the tap of a finger this exciting App allows remote operation of your Integriti system from anywhere in the world!
- Documents
-
Details
Product Sheets
- Product Images
