Inner Range Integriti Access Controller (IAC) - Large Cabinet with 2A PSU & Transformer

Inner Range Integriti Access Controller (IAC) - Large Cabinet with 2A PSU & Transformer

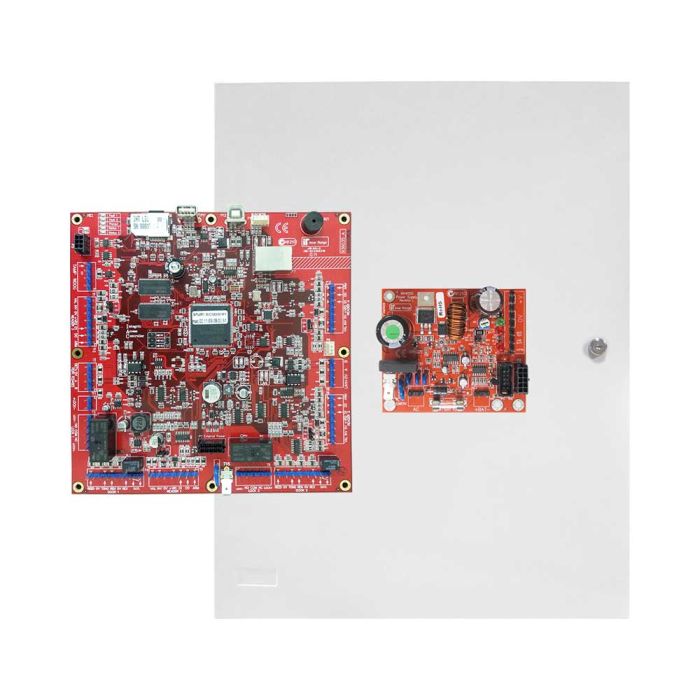

IAC controller in large cabinet with 2A PSU

SKU:21013

Test 1

Test 2

Overview

Details

The Integriti Access Controller (IAC) is an IP based master controller for the Integriti modular hardware system. The Integriti Access Controller can be used:

  • To control and monitor up to 8 Doors or Lift cars on the Integriti RS-485 LAN)
  • Supports two doors/four wiegand and 16 RS485 SIFER readers and is expandable up to eight doors/ eight wiegand readers with the simple addition of 2 Door expander boards via the UniBus in-cabinet expansion interface
  • Equipped with an Ethernet Port, the IAC can be used both stand alone or expanded further via its UniBus and RS-485 Sub-LAN ports
  • Flexible, modular design of the IAC’s system parameters and Sub-LAN architecture allows a single standalone controller to be expanded to form a network of RS-485 expansion modules of up to 100,000 Users, 512 Zone Inputs, 250 Areas/ Zone Partitions and up to 80 card readers and 40 Doors

Integriti’s multi-controller architecture allows any number of IAC’s and or ISCs to be combined within the Integriti software package to form a globally managed small, medium or enterprise sized system where the entire network of controllers is managed as a whole. This architecture allows for an infinite number of Readers, Doors, Areas, Zone Inputs and Outputs.

Optional Extras

Pair this product with:

Media

Details

Inner Range Integriti - How to create smart buildings by taking your security and building management to the next level.

Inner Range Security and Access Control solutions are leaders in Global research development and deployment of enterprise class security and access control systems.

The Integriti Mobile App packs a powerful punch of accessibility and control for your Integriti security and access control system. With the tap of a finger this exciting App allows remote operation of your Integriti system from anywhere in the world!
