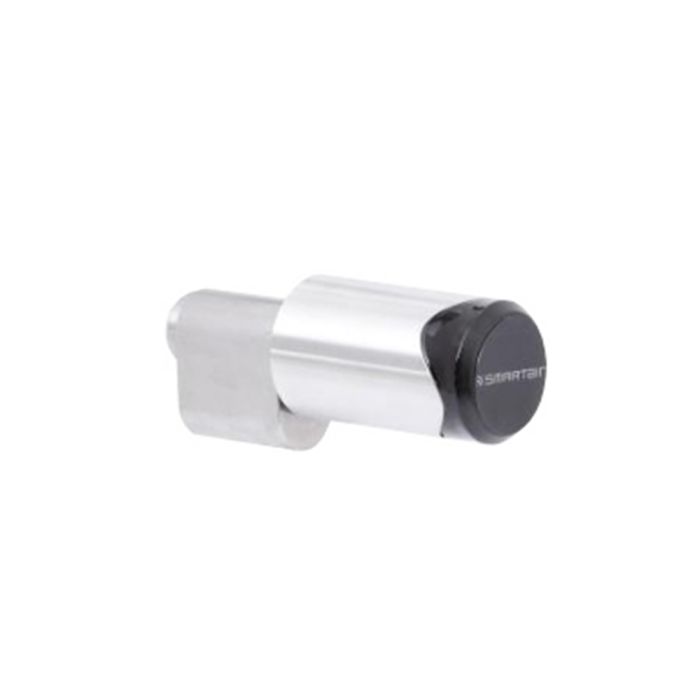

The SMARTair™ Knob Cylinder is an easy-to-use, simple-to-install and highly effective electronic cylinder that can be integrated with other SMARTair™ locking elements − escutcheons, wall readers, e-motion − in one Access Control system managed by SMARTair™ Software.
Installation is as simple as removing the existing mechanical 570 Oval cylinder from any compatible handle set and replacing with SMARTair™. Suitable for both internal and external installation.
Mechanical Features
- Freewheeling knob until an authorised credential is presented
- Motorised clutch activates cylinder cam
Electronic Features
Reader Module
- 13.56 MHz, MIFARE® DESFire technology
- Contact-less cards/tags
- RFID distance: 10mm with standard cards
- Programming device connection located on the front section of the electronic knob
- Indication light: Red & green LED
Control Unit
- Non-volatile memory
- Programmable in 3 modes: Normal mode - 1,500 users and 600 audit trail entries, Extended mode - 1,000 users and 1,000 audit trail entries, High traffic - All users of the installation have access and 1,000 audit trail entries, Real-time clock and calendar - 14 time profiles
- RF module (Wireless Version only):
- 900 MHz bi-directional radiofrequency technology
- PC Server sends updates from the hub to the control unit, and the lock sends the audit trail from the control unit to the hub
- Encrypted communication
- Distance between the RF module and the hub: 25m
Battery Module
- 1 x CR123A Lithium battery
- Estimated battery life: 40,000 cycles; 2 years in standby
- Simple battery change; no dismounting required
Environmental
- 85% humidity without condensation
- Temperature range: 0°C to 70°C
- IP55 Rating optional
