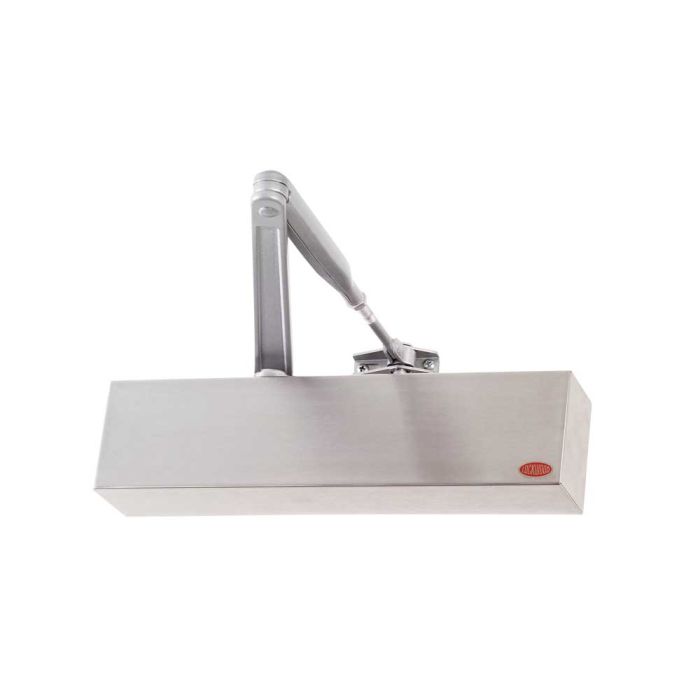

ASSA ABLOY Lockwood 7714SSS Stainless Steel Door Closer

ASSA ABLOY Lockwood 7714SSS Stainless Steel Door Closer
Slide arm door closer with adjustable back check and adjustable hold-open.

SKU:30351


Vendor Part No: DC7714DASSS

Test 1

Test 2

Overview

Details

The Slide Arm Series permits smoother opening by way of reducing power as the door opens. Ideally suited for schools, hospitals or doors where children, disabled or the aged may enter.

Key features:

  • Power: EN adjustable 1 to 3.
  • Back check (BC): Adjustable.
  • Hold Open: Adjustable. Hold-open can be set at any angle up to 130° of opening.
  • Handing: Non-handed. Suitable for left or right hand doors.
  • Cover: Fully formed metal.
  • Materials: Extruded aluminium body manufactured from high-performance silicon alloy.
  • Mechanism: Rack and pinion design.
  • Mounting: Regular and over-door mounting.
  • Valves: Adjustable closing and latching speed valves with overload protection.
  • Delayed Action: Adjustable.
