Details

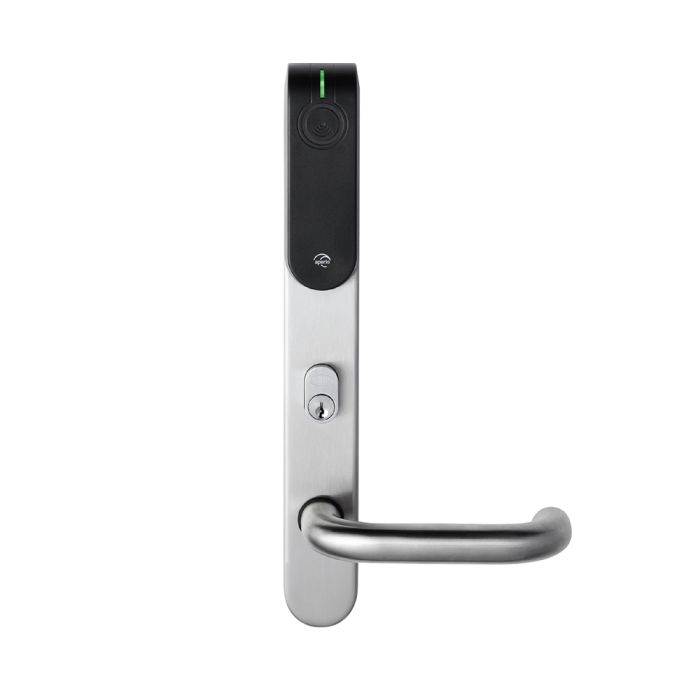

The E100 V3 Series Escutcheon is designed to fit Lockwood mechanical 3772 series mortice locks & provide a cost effective migration to an on line electronic access control door. In addition to mulit-format card access the external side of the door provides for key override entry, whilst the inside lever is designed for emergency egress.
With wireless locks running the V3 platform, even high frequency entrance door still operate for two years on a standard battery , maintaining remote opening functions of typically 5 seconds communication time between Aperio lock and the access control system through out the battery life.
With the faster response time and more powerful electronics Aperio enables standard online access control functionality at significantly reduced costs to that of a hard wired door.
Key Features
- Supports multiple RFID credentials
- Heartbeat communication: 5-10 seconds
- Remote door opening/locking functions
- Supports multiple high frequency RFID technologies and Seos mobile access
- Powerful new electronics with USB interface
- Audit trails and time zones managed through existing system
- Compatible with Lockwood 3570 & 3772 series mechanical mortise locks
- Additional Key Override
- Emergency egress
- Lock can store up to 10 override credentials/prox cards
- Store last 200 events and audit trails locally in the lock
- Increase battery performance – to 40,000 operations
- LED status
- Battery low warning sent to EAC system
Function
- External lever is always locked. To unlock badge card and activate lever. Door automatically re locks after set time. Can also be opened via Key override.
- Internal lever is set to escape – free egress at all times.
