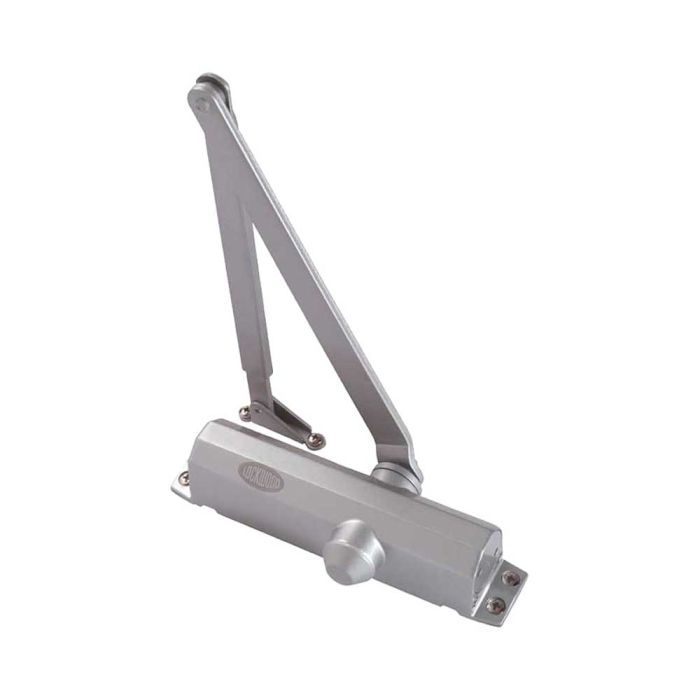

ASSA ABLOY Lockwood 2024BC Door Closer

ASSA ABLOY Lockwood 2024BC Door Closer
Medium duty door closer with adjustable back check and can be used on either side of door.

SKU:30350


Vendor Part No: L2024BCSIL

Test 1

Test 2

Overview

Details

The Lockwood range of economy door closers is particularly quick and easy to install on most applications, ideally suitable where cost is a high priority.

Multi position mounting template enables adjustment on site to meet most conditions also low stock holding as one model will cover 3 power sizes. Suitable for doors up to 1100 mm in width.

All products include parallel arm bracket; multi strength mounting (one model covers size 2, 3 and 4) ; parallel arm size 2 and 3.

Power Selection

The power of the door closer is altered by adjusting the position of the door closer body on the mounting template.

Specifications

  • Adjustment: Independent valves control closing and latching speeds which can be readily adjusted on site when required.
  • Power: EN power selectable 2 to 4.
  • Back check (BC): Available in this series, specify BC if required. Back check cushions or slows the door prior to reaching final opening position.
  • Hold Open: Adjustable. Hold-open can be set at any angle up to 130° of opening.
  • Handing: Non-handed. Suitable for left or right hand doors.
  • Hold-Open: Available in this series, specify HO. Hold-open option is not approved on any fire door.
  • Materials: High purity die cast aluminium housing with hardened steel rack pinion mechanism.
  • Mechanism: Rack and pinion design.
  • Mounting: Regular, parallel and over-door.
