Hikvision Mifare Card IC S50

Hikvision Mifare Card IC S50

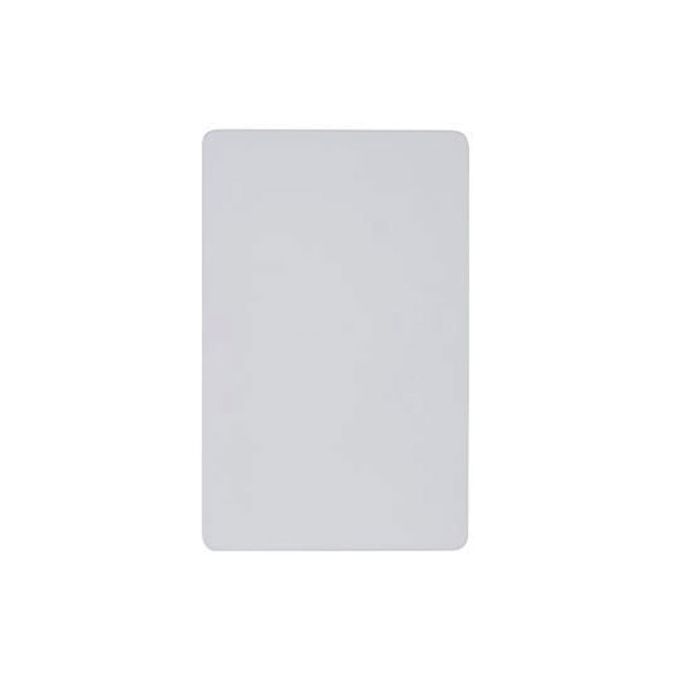

Mifare 1 Non-contacting IC Card

SKU:76305


Vendor Part No: IC S50

Test 1

Test 2

Overview

Details

MIFARE 1 S50 is a serial of non-contacting smart card that meets the standard of ISO/IEC 14443A. The communication layer (MIFARE RF interface) meets part2 and 3 of the ISO/IEC 14443A standard. The security layer supports CRYPTO1 data stream encryption of domain authentication.

Key Features:

MIFARE RF Interface (ISO/IEC 14443 A)

  • Non-Contacting data transmission and supplied power(no battery needed)
  • Working distance: no more than 100mm (depends on the antenna dimension)
  • Working frequency: 13.56 MHz
  • High data transmission speed: 106 k bit/s  Data integrity protection: 16 bit CRC, odd-even check, encoding and counting by bit.
  • Anti-conflict
  • Data transmission and processing time: < 100 ms (including backup and management time)

EEPROM

  • 1 k byte (16 zones, 4 sections per zone, 16 bytes per section)
  • User definable reading/writing condition for memory block
  • Long time data storage: 10 years
  • 100,000 writing times

Security

  • Triple accreditation(ISO/IEC DIS9798-2)
  • Attack protective radio-frequency channel data encryption
  • Two security keys (support multiple security levels) for each section
  • Only one serial No. for one card
  • Transmission security key to protect the access right of EEPROM during the transmission
