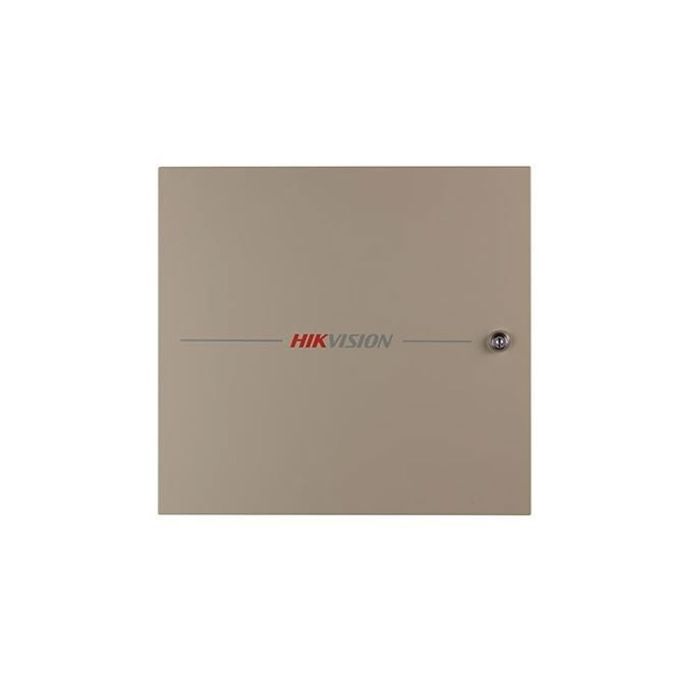

Hikvision DS-K2601-G Single-door Access Controller

Hikvision DS-K2601-G Single-door Access Controller

Designed with latest structure with TCP/IP and RS485 communication interface

SKU:76300-1

Vendor Part No: DS-K2601-G

Test 1

Test 2

Overview

Details

DS-K2600-G series access controller is designed with latest structure with TCP/IP and RS485 communication interface. The communication data is encrypted to improve the security of system. The controller also supports offline operation and is designed with tamper-proof switch.

Key Features:

32-bit high-speed processor
TCP/IP network communication, with self-adaptive network interface. The communication data is encrypted to ensure information security
The recognition and storage of card number with maximum 20 digits
Massive storage with 100,000 cards information and 300,000
Supports multi-door interlocking function (DS-K2602-G, and DS-K2604-G), anti-passback function, multi-card function, first card function, super card and super password function
Online upgrade function and online remote control of the doors
More features please refer to datasheet

Device Interfaces
Output Interface:		Lock Relay×1, Alarm Relay×2
Accessible Card Reader:		2 Card Readers (RS485 Interface) and 2 Card Readers (Wiegand Interface) Connectable
Uplink Communication Interface:		TCP/IP Network Interface and RS-485 Interface
Input Interface:		Alarm Input×4,Door Sensor×1, Exit Button×1, Case Input×2,Tamper Alarm×1
Downlink Communication Interface:		RS-485 and Wiegand (W26/W34)
