WEL376IP Touchless Rex Button

WEL376IP Touchless Rex Button

Rex Button - IP67- Touchless

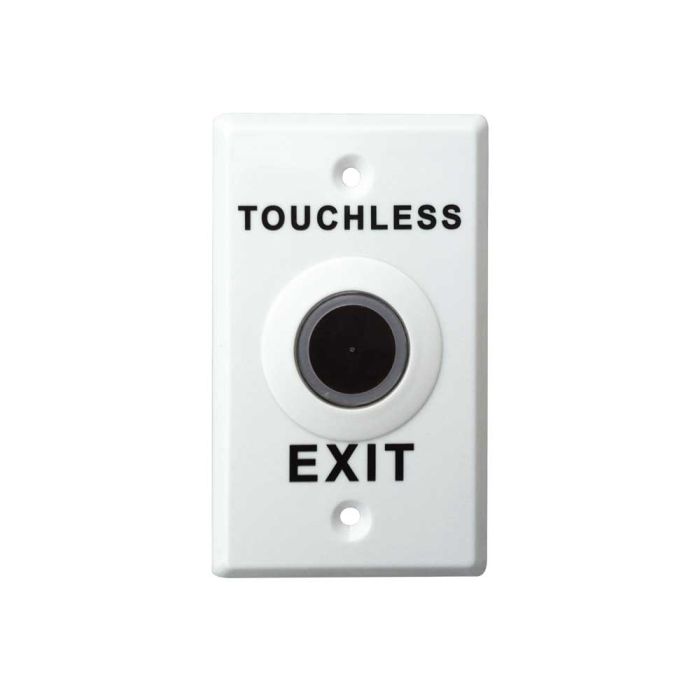

WEL376IP Touchless Rex Button

IP67 rated with illuminated dual colour LED and is activated by a simple hand wave.

SKU:30537

Vendor Part No: WEL3761P

Test 1

Test 2

Overview

Details

Key Features

The switch can be activated by a simple hand wave or approach
Fully waterproof IP67 rated
Dual colour LED illumination
Output timer selectable: 2 or 10 seconds
Plastic mounting plate
Dimensions: (W) 70mm x (H) 115mm x (D) 26mm
Input voltage: 12v DC; power connector 24v AC to
12vDC available
Current: 18mA standby; 50mA activation
Output: isolated NO and NC; 1A 30V DC

Documents

Details

Product Sheet

DFM Touchless Exit Button WEL3761 Brochure
