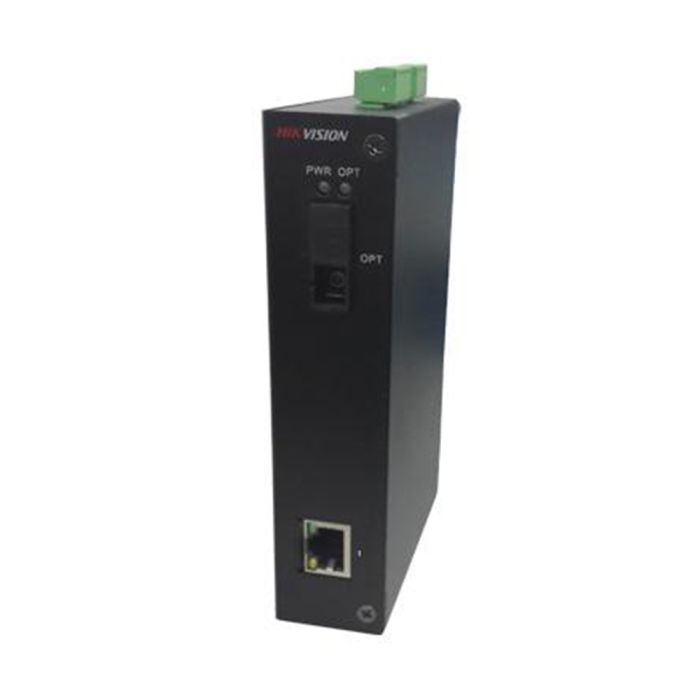

Adopting time division and wavelength division multiplexing technology, the DS-3D201 series Fiber Optic Transmitter/Receiver is capable of transmitting signal via the Ethernet interface in single-fiber and single-mode, and can be used both in pairs and cooperated with 1000M Optical Transceivers. Owing to the industrial design which is highly reliable, DS-3D201 series can be widely applied to the video surveillance systems in public security, transportation, mine, factory, etc.
Key Features:
- 1 10/100/1000BaseT(X) self-adaptive RJ45 interface;
- 1 1000BaseFX Ethernet optic interface ;
- Single fiber and single mode with 20 km transmission distance;
- Support IEEE802.3, IEEE802.3u, and IEEE802.3x network standards;
- Storage and forwarding switch;
- Broadcast storm prevention;
- Delay time of date exchange is less than 5us;
- Support QoS；
- Compact structure;
- Able to work between -30 °C and 70 °C (-22 °F ~ 158 °F);
- Plug and play, convenient installation
- Industrial design
- Input/output Wavelength: Tx1310/Rx1550nm
- Sending Power: -9~-1dBm
- 4U Rack-Mounted
