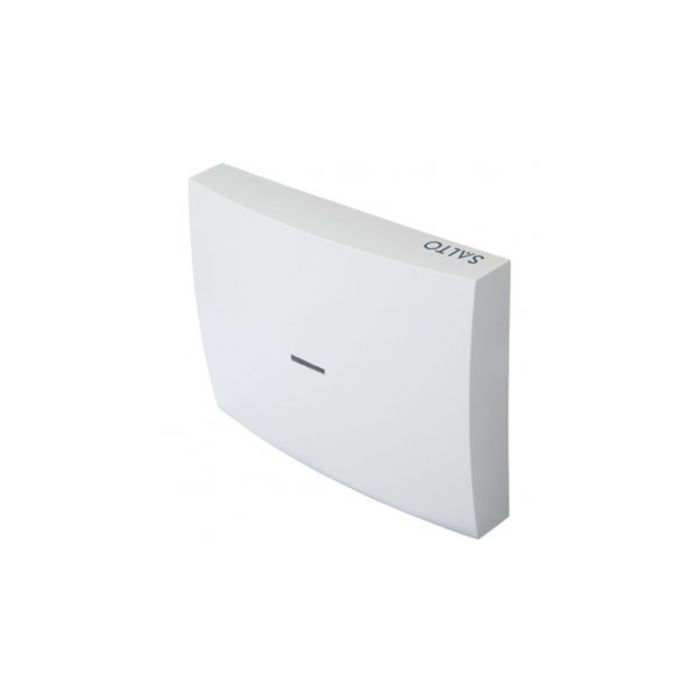

The SALTO wireless Gateway is the link between the PC and the wireless network (wireless escutcheons). It gives real-time information to the PC.
Gateways are completely managed through the SALTO Software: Pro Access SQL or HAMS SQL software, it collects all the information sent by escutcheons that belong to the Gateway.
It has been designed with PoE technology, capable of power the Gateway through Ethernet infrastructure.
Key Features
- Communication with the locks: Wireless radio frequency based on IEEE 802.15.4 at 2,4Ghz.
- Encryption: AES 128 bits encryption.
- Communication with the server: Connection to the LAN Network 10 BASE-T/100 BASE-TX.
- Power: PoE supported IEEE802.3af (12V power adapter optional).
- Multi Device: One gateway can manage up to 7 nodes (1 internal + 6 external nodes).
- RF range: 10-15 meters (30-35 ft).
- Temperature range: 0-60°C (32-140°F.
- LED lamps: Multi colour LED's to notify the status of the device.
- DHCP by default: Recommended.
- Firmware update: Via software through Ethernet connection.
- Addressing: IP addressing through web explorer (available).
- Tamper switch: Built in tamper micro switch to notify if the Gateway has been opened.
- Colour: White (also available in Black).
