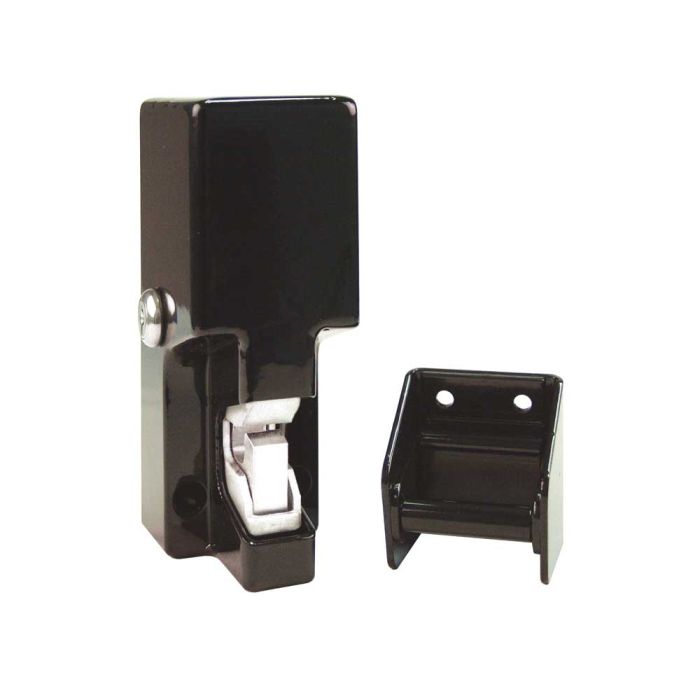

ASSA ABLOY Securitron GL1 2000lb Gate Lock - Fail Secure

ASSA ABLOY Securitron GL1 2000lb Gate Lock - Fail Secure
Designed to secure a wide variety of vehicle and pedestrian gate applications where security and weather resistance are required.

SKU:31040FS


Vendor Part No: SGL1-FLM

Test 1

Test 2

Overview

Details

The GL1 functions equally well in both electrically and manually operated gate installations and can be used for swing gates, sliding gates, stock cage gates or other applications.

Key override option available with product 31041. Recommended as the lock is secure and cannot be opened if the cable breaks.

Key features:

  • Operates under pre-load up to 100 lbs.
  • Automatic dual voltage - no field adjustment required
  • Manual key override (right or left hand)
  • Self-aligning receiver (+/- 1/2" horizontally) helps compensate for gate misalignment and sag
  • Tamper proof cast housing
  • Latch status monitor switch (SPDT)
  • Heavy wall 1/2" inside diameter threaded steel coupling
  • Surface Mount
  • Black finish
  • Holding Force: 2000 lbs. [907 kg]
  • Current Draw and Voltage:
    - 12 Volts Initial (Peak): (~1.0 sec.) at 870mA - Reduced: 290mA / Power Consumption: 3.5 Watts
    - 24 Volts Initial (Peak): (~1.0 sec.) at 720mA - Reduced: 170mA / Power Consumption: 4.1 Watts
  • Operating Temperature: -58 to +167F [-50 to +75C]
  • Warranty: MagnaCare Lifetime Replacement Warranty
