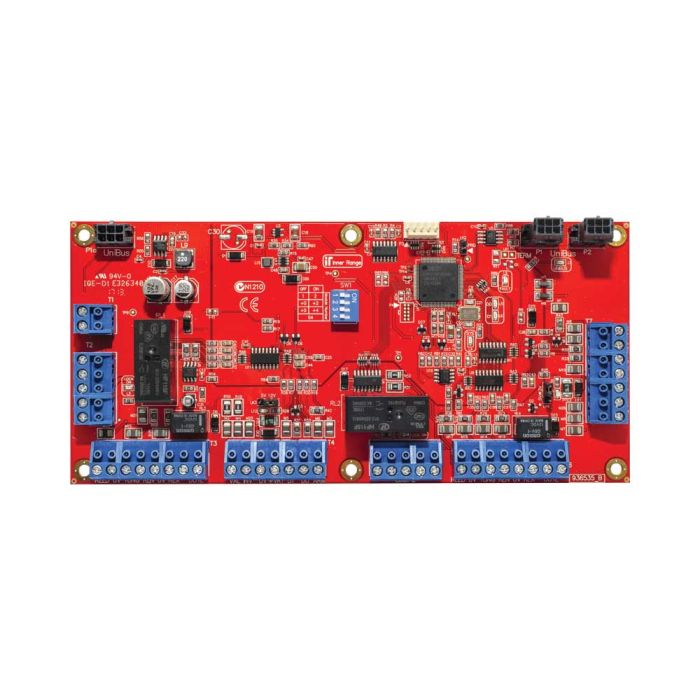

Inner Range Integriti - UniBus 2 Door Expander - PCB only

Inner Range Integriti - UniBus 2 Door Expander - PCB only
Used to provide control and monitoring of two additional Doors or Readers on a compatible UniBus host module.

SKU:21220


Vendor Part No: 996535PCB&K

Test 1

Test 2

Overview

Details

Features

  • Provides an additional 2 doors/2 readers for host module
  • UniBus connectivity to host module
  • Reader options to control doors, lifts, areas & user logon
  • Supports Wiegand card readers up to 88-bits
  • Reader outputs with individual self-resetting over current protection
  • UniBus loop-through connectors
  • LED status & fault indicators
  • Dedicated lock power input
  • Heavy duty lock relays
  • Reader valid & invalid outputs
  • Door reed & tongue sense inputs per door
  • Door request to enter & exit inputs per door
  • DOTL relay outputs per door
  • Integriti 'B' size footprint 200 x 94mm
  • Remote firmware upgrade over-the-wire
