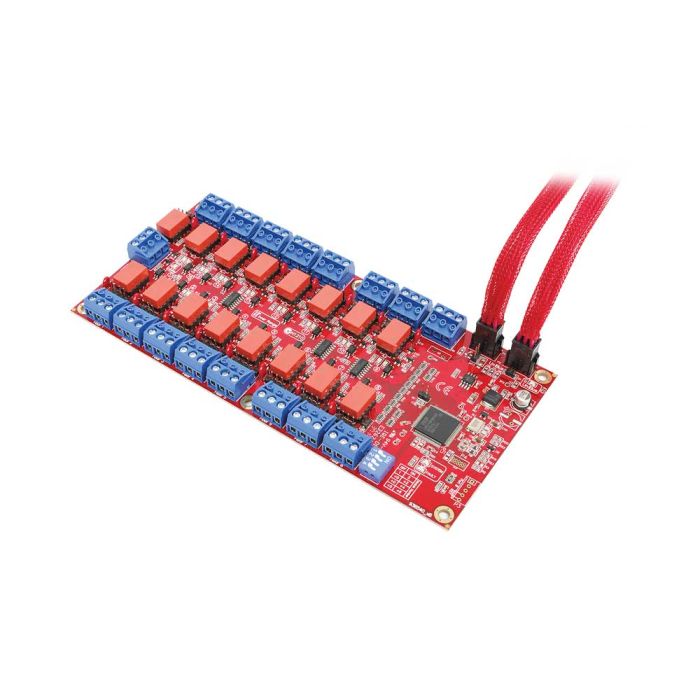

The UniBus 16-Floor Lift Interface device provides integration between the Integriti Security System and a lift control system in order to provide managed and secure floor access for users within multistorey buildings and apartment blocks. The UniBus Lift Interface device facilitates a low level button feedback interface between Integriti and the lift system. It incorporates input conditioning and switching to provide the isolation required between the two systems.
Using an Integriti UniBus cable, the device connects directly to the Integriti host module or via another UniBus device.
Up to 6 UniBus 16-Floor Lift Interface devices can be connected to a single host module in order to service up to 96 floors per host module. An Integriti Controller can accommodate up to 255 floors.
Key Features:
- Low level with button feedback UniBus connectivity
- Compatible with a range of Integriti host modules
- Manage 16 floors per device
- Connect up to 6 devices per Integriti host module
- Wide range of button input voltages
- Button sense input per floor
- Override input to allow free access mode
- Isolation between lift and Integriti system
- Firmware upgrade over-the-wire
