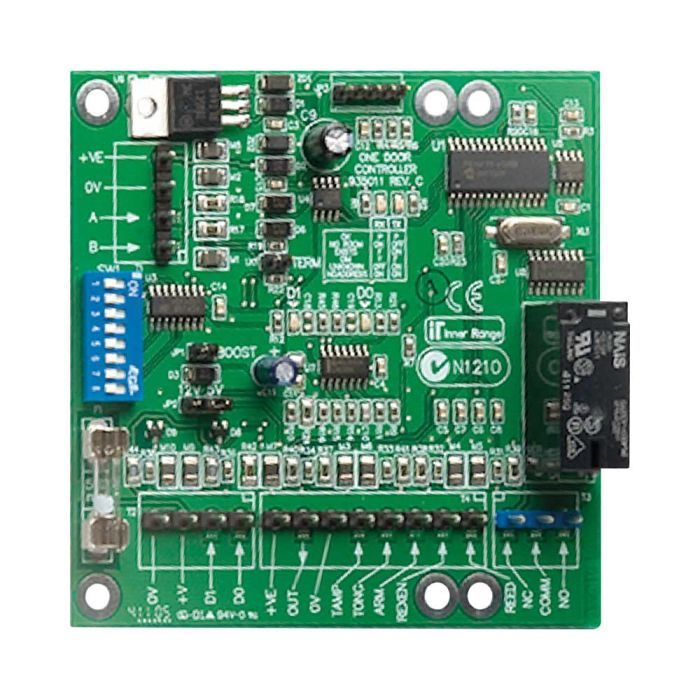

Inner Range Concept - 1 Door LAN Access Module - PCB only

An economical one door one card reader access module
In stock
SKU
20322P
Vendor Part No
995011PCB&K
My Favourites Compare
Email

Key Features

  • Supports magnetic swipe or Wiegand card readers without the need for an additional interface
  • Standard version supports offline database of up to 31 backup cards
  • Provides reed and tongue sense monitoring
  • Request to Enter (REN) and Request to Exit (REX) inputs provided
  • Door Open Too Long (DOTL), or valid and invalid outputs
  • On-board lock relay
  • Fuse protection of reader head power



Documents

Product Sheets
