HID Signo 40 Multiclass Wall Switch Reader

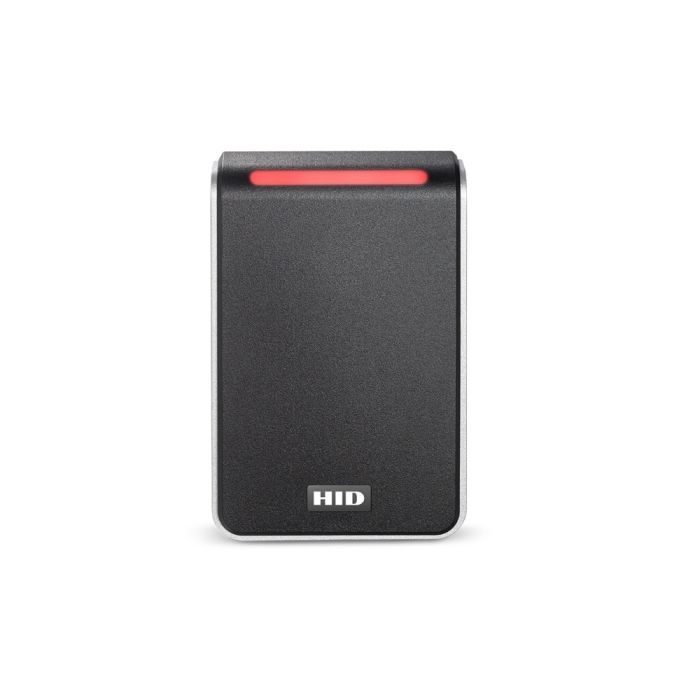

HID Signo 40 Wide Reader, iCLASS, SE/SEOS, Prox, Wiegand, BLE, Pigtail

SKU:HID-40NKS-00


Vendor Part No: 40NKS-00-0005TK

Test 1

Test 2

Overview

Details

HID combines versatility, performance and connected capabilities with the Signo range, setting a new industry benchmark. This range provides a simple and effective approach to secure access control for almost any scenario. Signo readers support past, present and future technologies, making this the perfect reader to transition to a secure authentication technology. The readers can be remotely managed via the reader manager app which empowers the installer to make necessary changes anytime, anywhere.

The HID-40NKS-00 wide profile reader is compatible with all high frequency technologies and has mobile capabilites right out of the box. Its versatility makes it suitable for most installations.

Product Features:

  • High versatility
  • Mobile capabilities right out of the box
  • Sleek and slim profile
  • Configurable with Mobile Reader Manager App
  • Covers all HID iClass high frecuency technologies including iClass/SE/SEOS/PROX
  • Operating voltage: 12V DC
  • Standby current: 65mA
  • Average current: 75mA
  • Max current: 250mA
  • Operating temp: -35 degrees C to +66 degrees C
  • Dimentions: 80mm x 121.5mm x 19.5mm
  • Weight: 140g
  • Pigtail
  • Suited to mount and cover single gang switch boxes with a slotted mounting plate for alternate back-box spacing
  • Supported Technologies
  • 13.56MHz High Frequencies
  • iClass Family
  • iClass (legacy)
  • iClass SE
  • SEOS
  • Mifare Family
  • Classic (with SIO encoding)
  • EV1/EV2 (with SIO encoding)
  • CSN/UID
  • 125KHz Low Frequencies
  • HID PROX
  • Indala (ASP10022 26-bit open format)
