HID combines versatility, performance and connected capabilities with the Signo range, setting a new industry benchmark. This range provides a simple and effective approach to secure access control for almost any scenario. Signo readers support past, present and future technologies, making this the perfect reader to transition to a secure authentication technology. The readers can be remotely managed via the reader manager app which empowers the installer to make necessary changes anytime, anywhere.

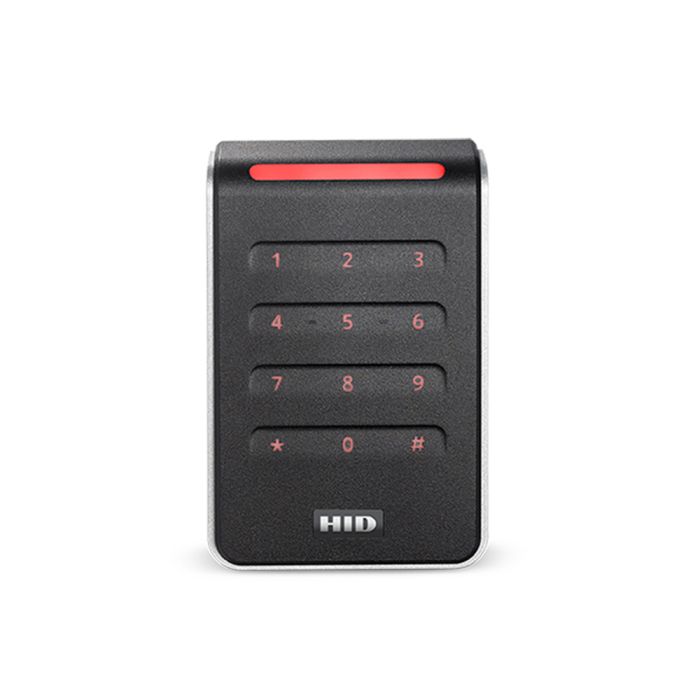

The HID-40KNKS-02 wide profile reader is compatible with iClass, SE/SEOS and Weigand, and includes a 3 x 6 keypad.
Product Features:
- High versatility
- Mobile capabilities right out of the box
- Sleek and slim profile
- Configurable with Mobile Reader Manager App: LED colour feedback
- OSDP - Address and baud rate
- Wiegand
- Keypad output (4 bit buffered or PIN as 26-bit Wiegand)
- CSN output (32-bit, 34-bit, 40-bit, 37-bit, 56-bit or 26-bit with site code)
- Technology suppression (turning off iClass, Mifare or CSN)
- Load mobile keys
- Bluetooth power range
- Covers all HID iClass high frequency technologies including iClass/SE/SEOS
- Pigtail
- Suited for mullion-mount door installations or any flat surface mounting
- Operating voltage: 12V DC
- Standby current: 70mA
- Average current: 80mA
- Max current: 250mA
- Operating temp: -35 degrees C to +66 degrees C
- Dimensions: 80mm x 121.5mm x 21.5mm
- Weight: 160g
- Supported Technologies
- 13.56MHz High Frequencies
- iClass Family
- iClass (legacy)
- iClass SE
- SEOS
- Mifare Family
- Classic (with SIO encoding)
- EV1/EV2 (with SIO encoding)
