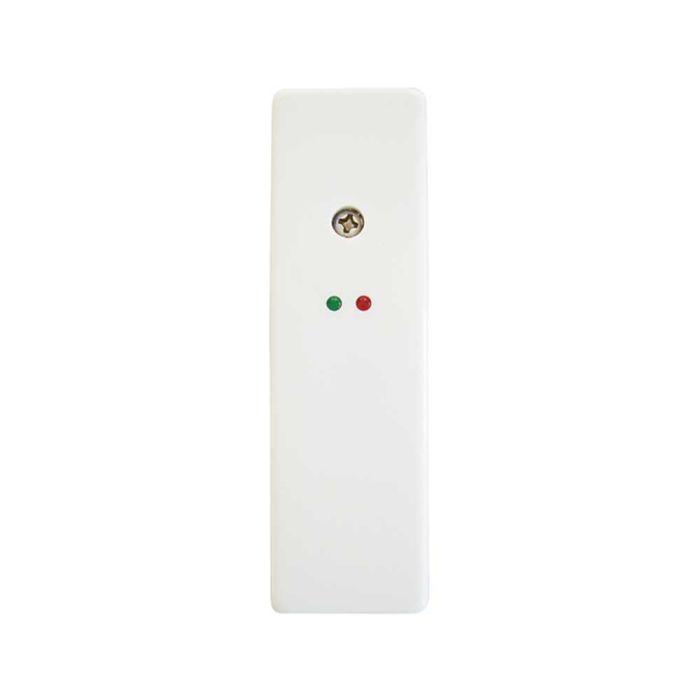

WSD01 Shock Sensor Relay Output/Momentary or Latching
9-16vDC
In stock
SKU
1-05330
Vendor Part No
WSD01
Key Features
- Piezoelectric transducer is applied
- Wide range of sensitivity selection
- Quiescent Current 15mA, Alarm 18mA
- -10 to +55°C Operating Temperature
- 150mA 24V: 10 ohm resistor in series
- One or two pulse counting
- Size: 21 (L) x 26 (W) x 87 (H) mm
- LED display on/off (red alarm)
- Latching or momentary
- Moisture repelling rubber grommet is included
