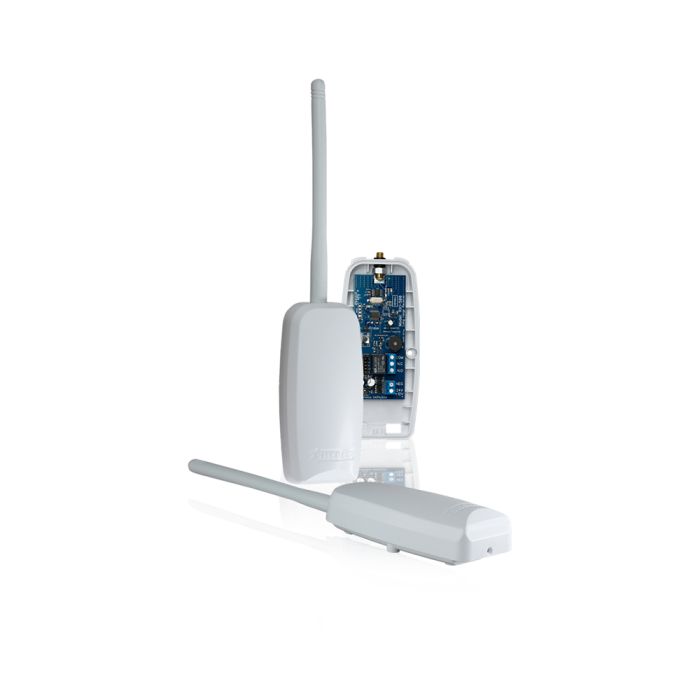

Sherlo RX4-500 4 Channel 500m Receiver

Sherlo RX4-500 4 Channel 500m Receiver

Sherlo RX4-500 4 Channel 500m Receiver

Sherlo RX4-500 4 Channel 500m Receiver

Selectable 1 or 3 seconds momentary relay contact

SKU:10504

Vendor Part No: Rx4-400

Test 1

Test 2

Overview

Details

Key Features

Code hopping Encryption
Latch or Momentary
Selectable Momentary times: 1 Sec; 3 Secs; 1 min; 3 mins; ON/OFF
Buzzer tone
Frequency: 433MHz
12 - 24V AC/DC input
Weatherproof housing
Range : Up to 500m (Open air)
Voltage Range : 9.8V to 26V AC/DC
Dimensions: 187mm x 104mm x 67mm
Gross Weight : 235 grams
Operating Temp : -3°C to 65°C
Input Voltage Range 12 - 24V
Relay contact rating 1A
Memory Capacity : RX1-500/80 Remotes - RX4-500/64 Remotes
Outputs : 4 Dry Contact Relays
Current draw : 20mA

Documents

Details

Product Sheets

SherloTronics 500m Receivers Brochure
