IR Integriti - 2 Amp Power Supply Kit for AG Cabinets

IR Integriti - 2 Amp Power Supply Kit for AG Cabinets

Includes Integriti 2 Amp PSU, 40VA Transformer, Screws & Standoffs, 7.0 A/H Battery

SKU:21192KIT

Test 1

Test 2

Overview

Details

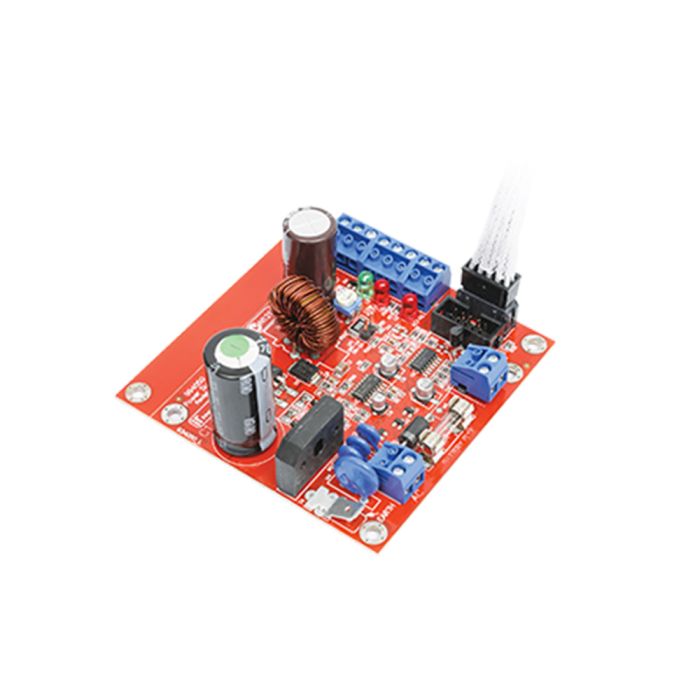

The Standard 2Amp 13.75VDC power supply is a universal power supply which can be used wherever battery backed 12V supplies are required. The Standard 2Amp power supply boasts a highly reliable design that offers exceptional stability when used with the recommended battery type and is also suitable for providing power to card readers including Proximity type reader heads. The Standard 2Amp power supply is factory fitted in Small Integriti and Concept equipment enclosures, or supplied as a PCB module.

The Standard 2Amp power supply can also be used as a general purpose, battery-backed, 13.75VDC supply to power legacy or 3rd party equipment via the plug-on screw terminals. It is extensively used to power Integriti or Concept modules, detectors, readers and auxiliary devices such as strobes, sounders and locks.

Product Features:

10-way Quick-Connect output for Integriti Modules such as the 8 Zone LAN Expander, Intelligent LAN Access Module (ILAM)
Ribbon cable output for Concept Modules, such as the Mini Expander, and the 2 Door Access Module
Separate DC output connections (Screw terminals)
Low-level AC Fail alarm output
Low-level Battery Fail alarm output
Low-level Trigger Battery Test input
Small form factor
Fused AC input and battery protection (4Amp)
LED indication of Output Present, AC Fail and Reverse Battery Polarity
Can be linked with a second 2Amp power supply to provide a 4Amp or dual-redundant power source
Can be set to a 1Amp current limit
16VAC Input (A 3Amp transformer is required)
