- Overview
-
Details

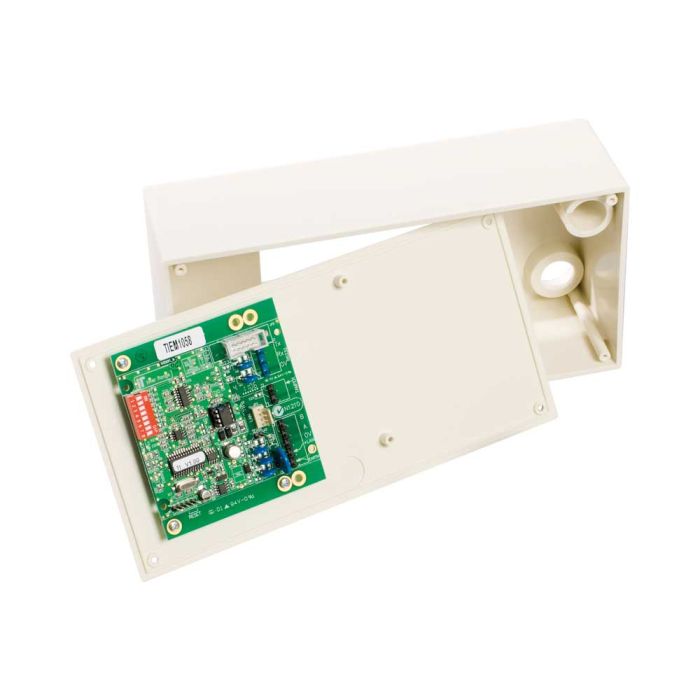

Eminently suitable for home automation applications, the Terminal Interface opens pathways for connections to, and control of, a Concept system by touch screens, embedded controllers and custom software applications using straightforward scripting. Previously, such levels of integration were solely in the realm of expensive custom software interfaces. The Terminal Interface operates by sending keystroke commands to the Concept system as an LCD Terminal does. In this way, authentication is still controlled by the Concept Control Module, greatly reducing application development time and cost. With this level of accessibility to the Concept system and its features, a plethora of automation, system control and other applications become possibilities within easy reach of anyone with simple scripting skills.
Key Features
- Operates as an LCD Terminal over an RS-232 interface
- Specific ASCII characters sent to the Terminal Interface via RS-232 drive the controller in exactly the same waythat key presses on an LCD Terminal would
- RS-232 cables are available for use with this product to support both DB9 (IR-993009) and DB25 (IR-993025)connections
Specifications
- 238mm(L) x 118mm(W) x 74mm(D)
- 11-14V DC @ 12mA minimum operational current (max 45mA)
