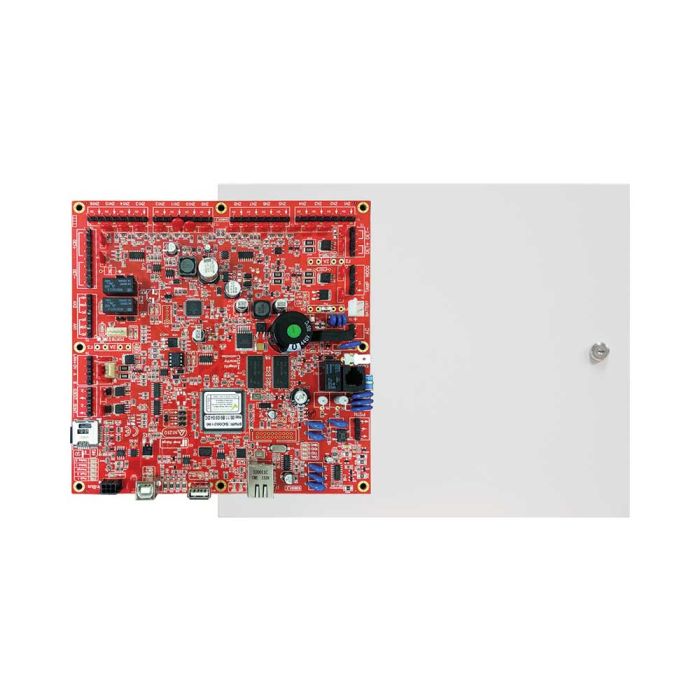

The Integriti Security Controller (ISC) is a state of the art IP based security system controller with powerful embedded processors and extensive on-board memory capacity. The ISC controller runs on its own proprietary operating system delivering blistering hi-speed performance.
The modular nature of the controller and the Integriti system provides intrusion, access control and integrated solutions to suite a wide range of specifications, from small retail stores to large university campuses, hi-rise commercial buildings and entire global enterprises.
Integriti’s multi-controller architecture allows any number of ISC's to be combined within the Integriti software package to form a globally managed small, medium or enterprise sized system, where the entire network of controllers is managed as a whole. This architecture allows for an infinite number of Readers, Doors, Areas, Zone Inputs and Outputs.
The ISC is equipped with 16 Zone Inputs, 2 Auxiliary Relay Outputs, Power Supply, IP Ethernet Port, modem and internal & external siren outputs, and can be used both stand alone or expanded further via its UniBus and RS-485 Sub-LAN ports.
The flexible, modular design of the ISC's system parameters and Sub-Lan architecture allows a single standalone controller to be expanded to form a network of RS-485 expansion modules of up to 100,000 Users, 3,000 Zone Inputs, over 3,000 thousand Outputs, 250 Areas/Zone Partitions and over 1000 card readers and 240 Doors.
The ISC also offers a UniBus in-cabinet expansion interface where a variety of UniBus I/O and communications devices can be connected directly to the controller and housed within the same tamper protected enclosure.
Key Features
- IP based Multi-Controller system architecture options
- 32 bit ARM CPU
- Ultra high speed proprietry operating system
- Ethernet on-board for:
- Connectivity to Integriti Software
- SkyTunnel® Cloud Services
- Integriti Mobile Smart Phone connectivity
- Automation Interface
- BMS / HVAC Integration
- EMS / Lift Access Control Integration - 64 MB RAM
- 2GB Micro SD on-board
- Smart Card licensing system
- USB Master & Slave ports
- UniBus Peripheral Interface
- Remote connectivity via Web based Mobile Application
- Intelligent Power Control via Smart Fuses
- RS485 multi-drop Sub LAN (Up to 1.5 Kilometers)
- Backwardly compatible with most Concept LAN modules**
- Upgrade firmware in Controllers and new LAN modules via USB or remotely over the wire
- New easy "Plug & Play" in-cabinet UniBus for adding expansion and functionality
- Amazing, powerful Scripted Logic capability
- 16 Zone inputs on-board (expandable to 32)
- 2 Auxiliary outputs (relays - expandable to 32)
- Built in highly efficient low voltage power supply
- PSTN telephone dialler on-board
- Dedicated Port for Multipath-IP communications device
- Internal & External siren drivers on-board
- Dedicated watchdog output
**Concept Intelligent 2 and 4 Door Access Modules can be used in Integriti compatibility mode with a firmware update. Compatibility mode has limited offline functionality - Optional Extras
-
