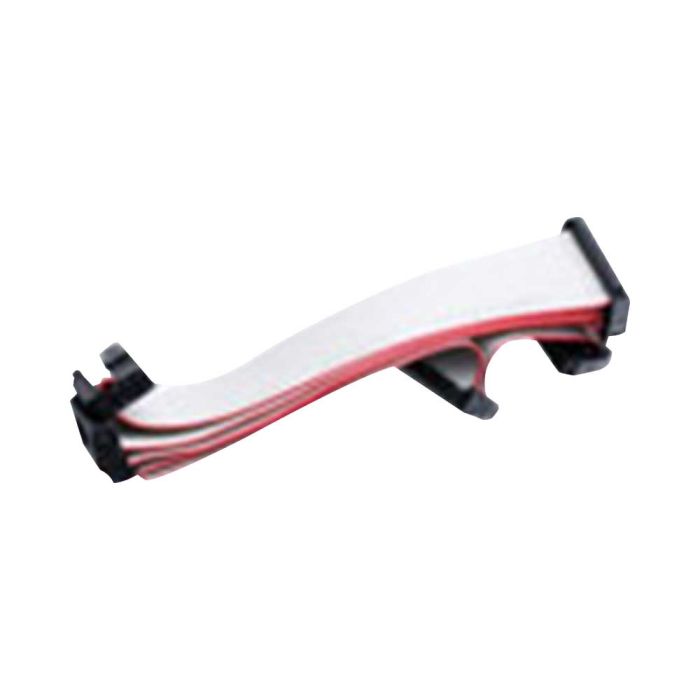

Inner Range 6 Way Relay Extension Cable

Inner Range 6 Way Relay Extension Cable
For lift interface boards & universal expanders

SKU:20343


Vendor Part No: 995019

Test 1

Test 2

Overview

Details

Overview

The optional Lift Interface board enables extensive control and monitoring of lift car operation and floor access. Up to 32 floors may be controlled and monitored per Universal Expander using up to four optional Lift Interface boards and a Lift Interface Extension Cable (IR-995019). Each Lift Interface board has 8 opto-isolated zone inputs and 8 relay outputs to provide the facility to connect to lift control systems. Button feedback can be enabled where required. This feature ensures that only one button can be pressed per valid card read. Additionally, Concept 4000 provides the means for different sets of floor buttons to be made available depending on the user attempting to access the lift buttons.

Features

  • Each Control Module will secure up to 64 floors and 16 lift cars. Custom configurations will allow 32 lift cars. For larger applications, use multiple Control Modules linked using Insight software
  • Lift access readers are interfaced using standard Concept 4000 Door Access Modules
  • Button feedback supported. Logs user and selected floor
