HID Signo 20 Multiclass Mullion Mount Reader

HID Signo 20 Multiclass Mullion Mount Reader

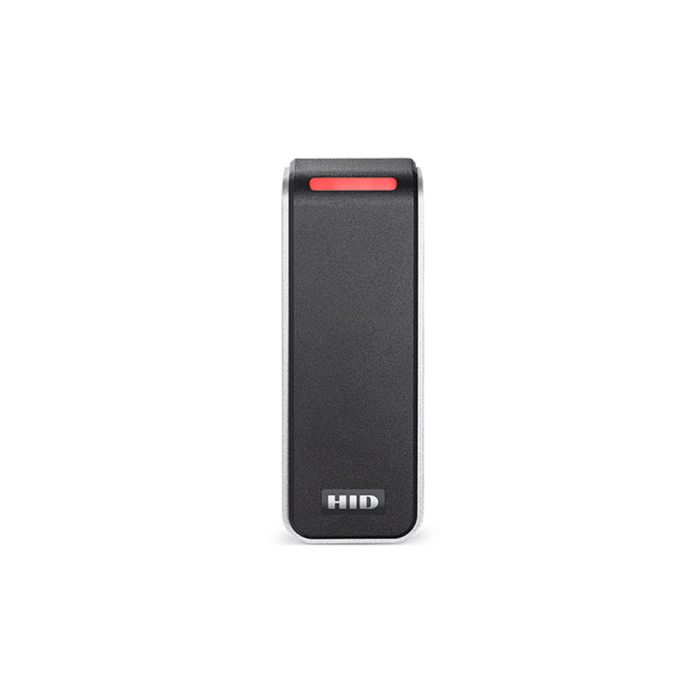

HID Signo 20 Slim Reader, iCLASS, SE/SEOS, Prox, Wiegand, BLE, Pigtail

SKU:HID-20NKS-00


Vendor Part No: 20NKS-00-0001WZ

Test 1

Test 2

Overview

Details

HID combines versatility, performance and connected capabilities with the Signo range, setting a new industry benchmark. This range provides a simple and effective approach to secure access control for almost any scenario. Signo readers support past, present and future technologies, making this the perfect reader to transition to a secure authentication technology. The readers can be remotely managed via the reader manager app which empowers the installer to make necessary changes anytime, anywhere.

The HID-20NKS-00 slim profile reader is compatible with all high frequency technologies and has mobile capabilites right out of the box. Its versatility makes it suitable for most installations.

Product Features:

  • High versatility
  • Mobile capabilities right out of the box
  • Sleek and slim profile
  • Configurable with Mobile Reader Manager App:
    • LED colour feedback
    • OSDP - Address and baud rate
    • Wiegand
    • Keypad output (4 bit buffered or PIN as 26-bit Wiegand)
    • CSN output (32-bit, 34-bit, 40-bit, 37-bit, 56-bit or 26-bit with site code)
    • Technology suppression (turning off iClass, Mifare or CSN)
    • Load mobile keys
    • Bluetooth power range
  • Covers all HID iClass high frecuency technologies including iClass/SE/SEOS/PROX
  • Operating voltage: 12V DC
  • Standby current: 60mA
  • Average current: 70mA
  • Max current: 250mA
  • Operating temp: -35 degrees C to +66 degrees C
  • Dimentions: 45mm x 121.5mm x 19.5mm
  • Weight: 95g
  • Pigtail
  • Suited for mullion-mount door installations or any flat surface mounting
  • Supported Technologies
  • 13.56MHz High Frequencies
  • iClass Family
  • iClass (legacy)
  • iClass SE
  • SEOS
  • Mifare Family
  • Classic (with SIO encoding)
  • EV1/EV2 (with SIO encoding)
  • CSN/UID
  • 125KHz Low Frequencies
  • HID PROX
  • Indala (ASP10022 26-bit open format)
