- Overview
-
Details
HID combines versatility, performance and connected capabilities with the Signo range, setting a new industry benchmark. This range provides a simple and effective approach to secure access control for almost any scenario. Signo readers support past, present and future technologies, making this the perfect reader to transition to a secure authentication technology. The readers can be remotely managed via the reader manager app which empowers the installer to make necessary changes anytime, anywhere.

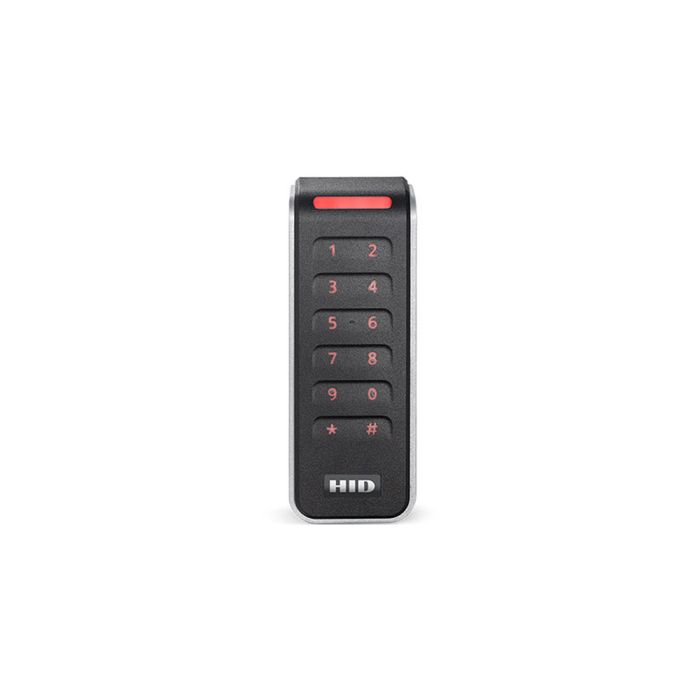

The HID-20KNKS-00 slim profile reader is compatible with all high frequency technologies and has mobile capabilites right out of the box. Its versatility makes it suitable for most installations, especially as it includes a 2 x 6 keypad.
Key Features:
- High versatility
- 2 x 6 keypad
- Mobile capabilities right out of the box
- Sleek and slim profile
- Configurable with Mobile Reader Manager App
- Capacitive touch keypad
- Covers all HID iClass high frecuency technologies including iClass/SE/SEOS/PROX
- Operating voltage: 12V DC
- Standby current: 65mA
- Average current: 75mA
- Max current: 250mA
- Operating temp: -35 degrees C to +66 degrees C
- Dimentions: 45mm x 121.5mm x 21.5mm
- Weight: 110g
- Pigtail
- Suited for mullion-mount door installations or any flat surface mounting
Supported Technologies:
13.56MHz High Frequencies
- iClass Family
- iClass (legacy)
- iClass SE
- SEOS
- Mifare Family
- Classic (with SIO encoding)
- EV1/EV2 (with SIO encoding)
- CSN/UID
125KHz Low Frequencies
- HID PROX
- Indala (ASP10022 26-bit open format)
