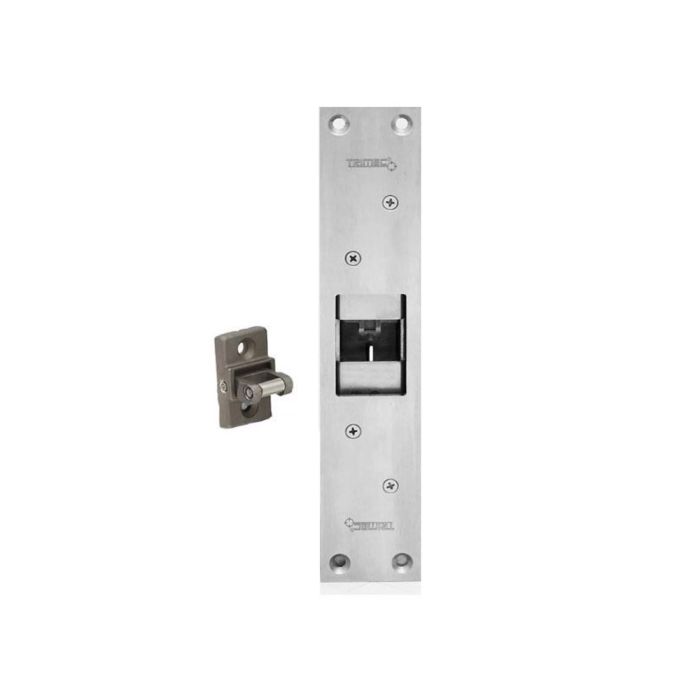

The ES6000 surface mounted Hook Lock has been designed with the architect in mind. The ES6000 has a cast aluminium cover that can be supplied in a wide variety of colours to match existing door frames. The lock is suitable for swinging doors, sliding doors and is easily attached to wood or steel door frames.
Key Features
- Mortice Lock
- Side load (pre-load) capable operates freely with up to 300kgs of side pressure
- Self latching will self latch without power for fire applications
- 700kg holding force
- Robust construction stainless steel components used
- Low profile will protrude only 40mm into door headroom
- Multi voltage automatic selection 12 to 30 volts DC with back EMF protection and reverse polarity protection
- Multi orientation can be mounted vertically or horizontally
- Low current consumption
- 12VDC- 250mA after 1 sec. (initial current 830mA)
- 24VDC- 140mA after 1 sec. (initial current 530mA)
