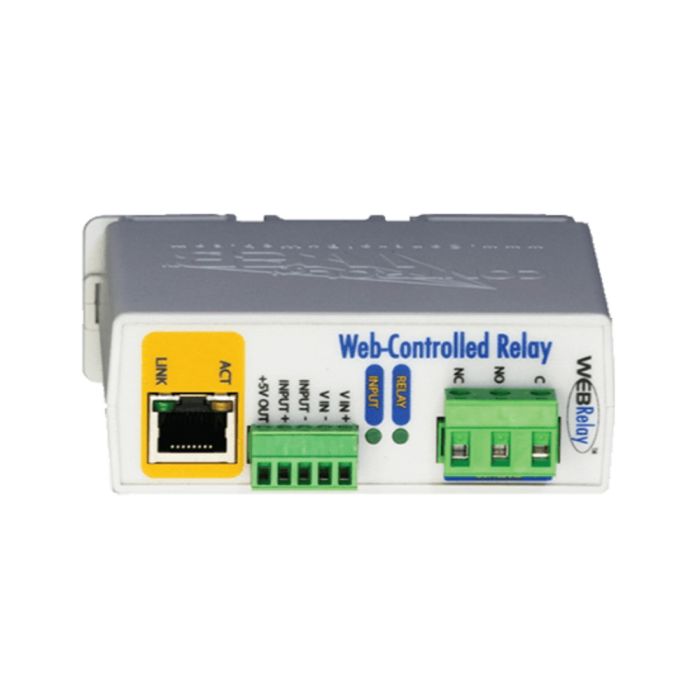

2N Web Relay - 1 Output 1 Input

2N Web Relay - 1 Output 1 Input

Web Relay

Stock: 0 (Contact us for stock ETA or substitutes)

SKU:2N-01397-001

Vendor Part No: 01397-001

Test 1

Test 2

Overview

Details

WebRelayTM provides reliable remote relay control and discrete signal monitoring over any IP network. WebRelay can be used in countless applications, including pump and motor control, security lock systems, remote reboot, and lighting control. WebRelay’s powerful and flexible design make imagination its only limit. In addition to its built-in relay, WebRelay has an optically-isolated input that can be used to monitor the state of devices, control the relay, or control a remote relay somewhere else on the network. This feature is useful to extend the output of a PLC to another building, or to allow a switch or sensor to control a device at a distant location.

Key Features

No programming required
Full control using a standard web browser or textbased XML messages
Can operate as a Modbus TCP/IP slave
Password protected
12-Amp relay contacts
On/Off and Pulse modes
Optically-isolated input can be used for: Monitoring, Relay control, Remote relay control (Peer to Peer)
Automatic Reboot controller mode for remote reboot of computers and network devices.
Selectable TCP ports
Two removable terminal connectors included
Rugged DIN-Rail/wall mountable enclosure
9-28 VDC
